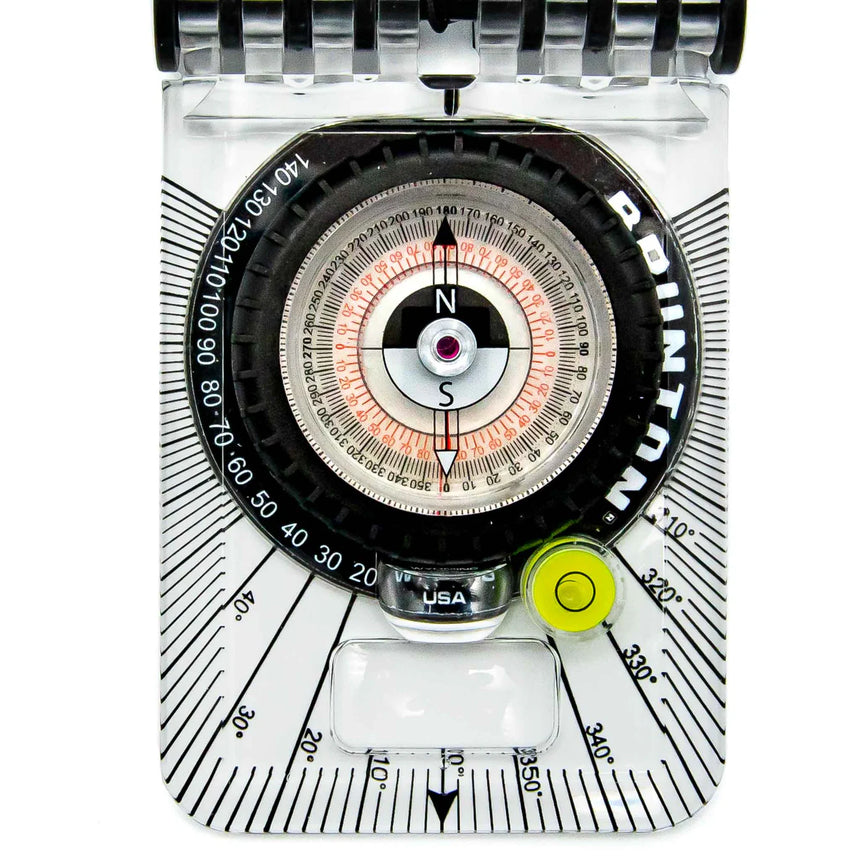

Brunton Geo Lite™ Transit
Description
Description

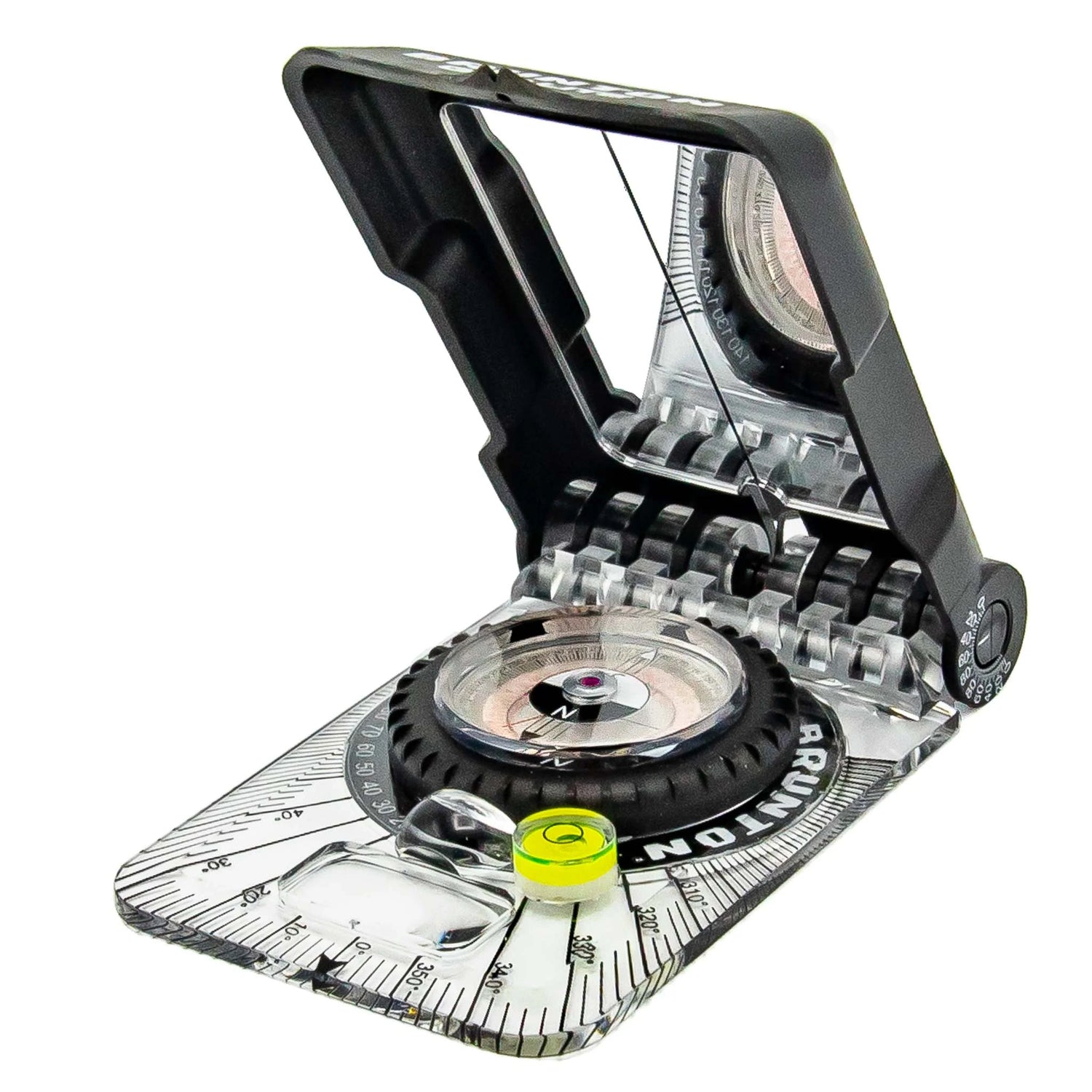

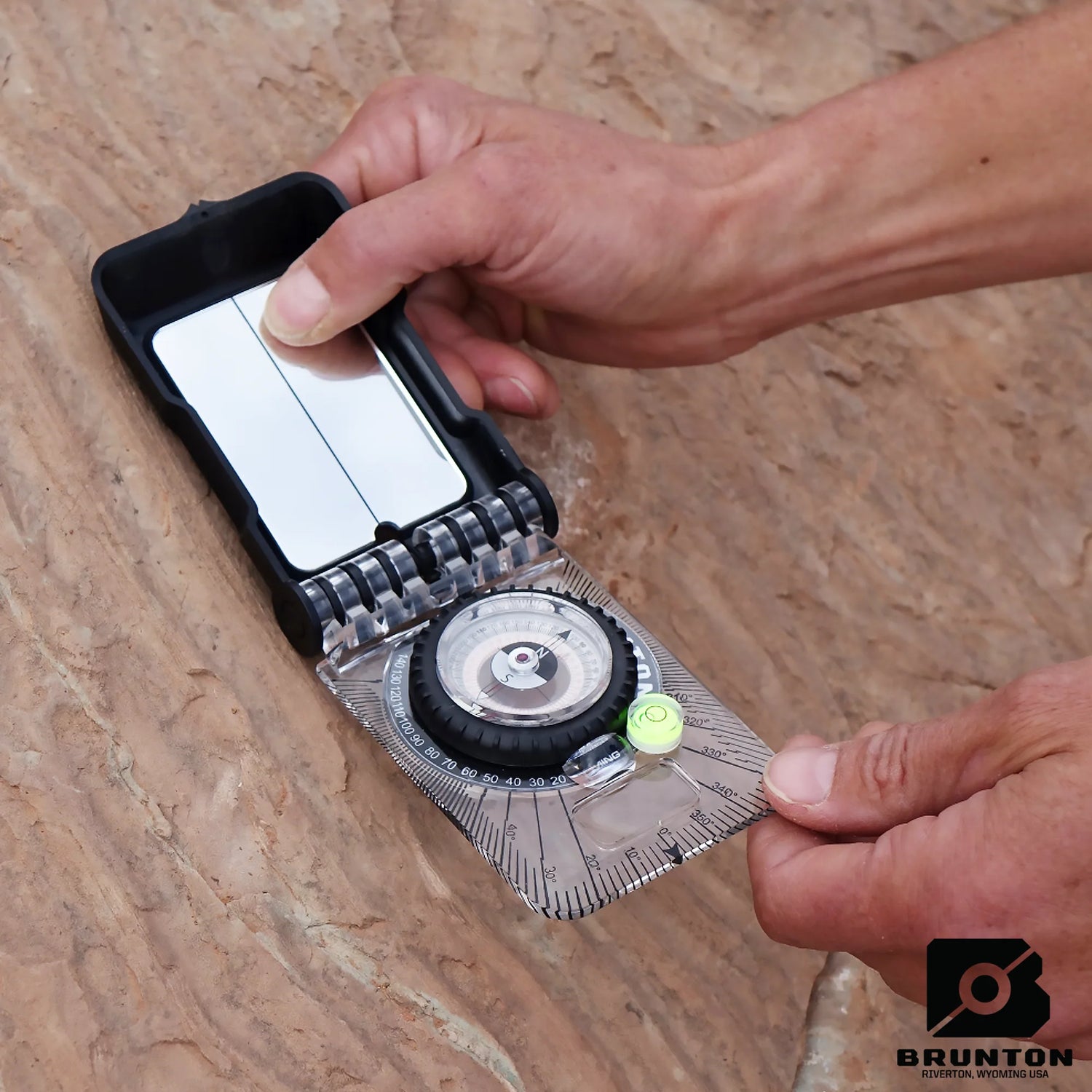

A baseplate compass that works like a transit! This geology-specific mirrored baseplate compass is ideal for students and field geologists in need of a lightweight compass with transit features and functionality. Geologic measurements can be made using traditional strike & dip methods or dip & dip direction configurations. With two clinometers and a protractor on the clear baseplate, the Geo Lite™ is a versatile and lightweight tool for field mapping.
Features
- Transit-style direct read azimuth system.
- Slender needle for a more accurate read.
- Hinge clinometer enables dip/dip azimuth measurements.

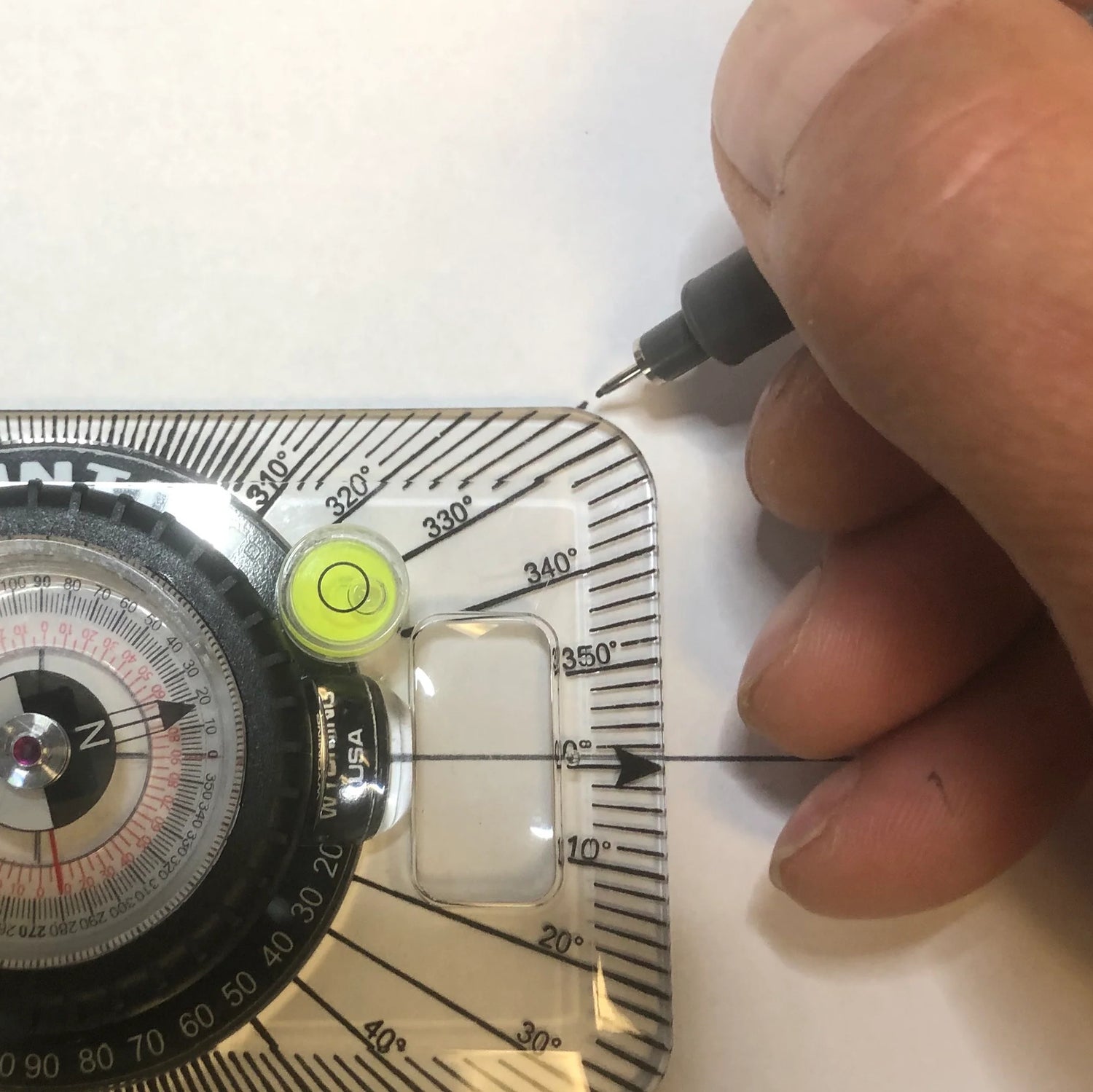

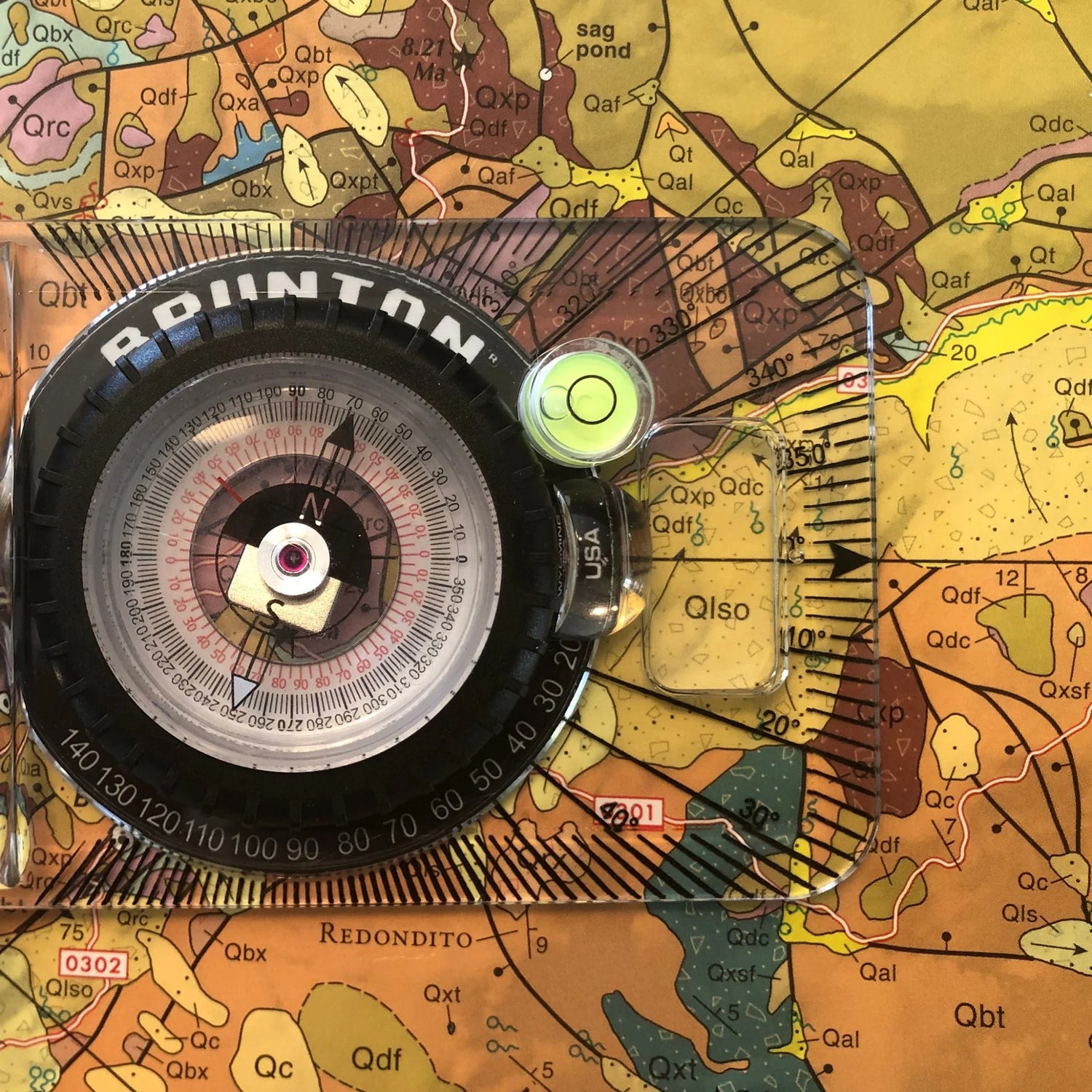

- Integrated protractor for plotting data on a field map.
- Bubble level for accurate strike measurement.
- 2˚ resolution for azimuthal readings (strike, dip azimuth, directional bearings).
- 5˚ resolution for clinometer readings.
- Brunton EverNorth Magnet resists demagnetisation over time.
- Map Magnifier.

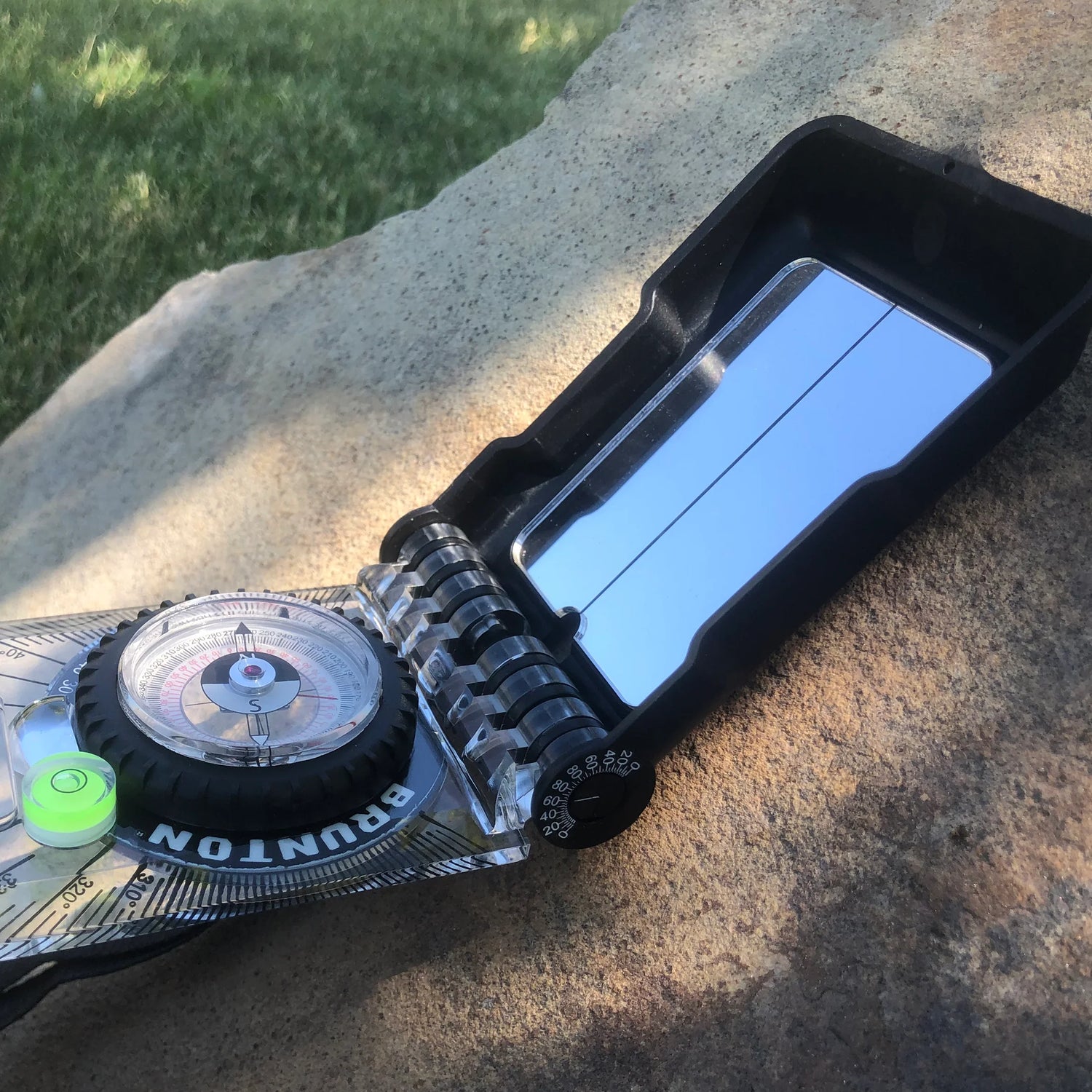

- Sighting mirror for accurate bearings.
- Tool-free declination adjustment.
- Romer scales included for easy integration with handheld GPS unit.

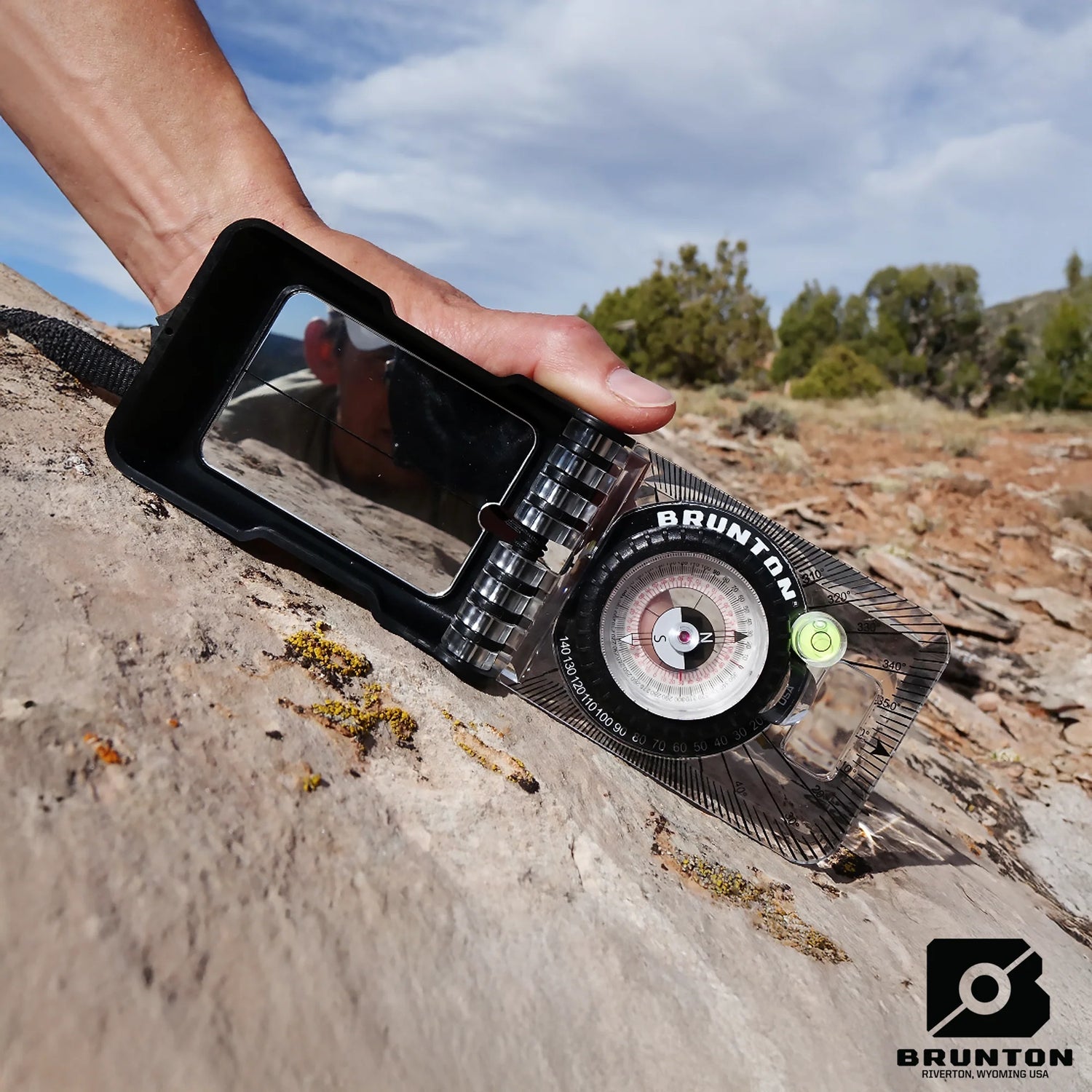

- Flat bottom for accurate strike and dip measurements at low angles.
- Hot stamped base plate for improved durability.

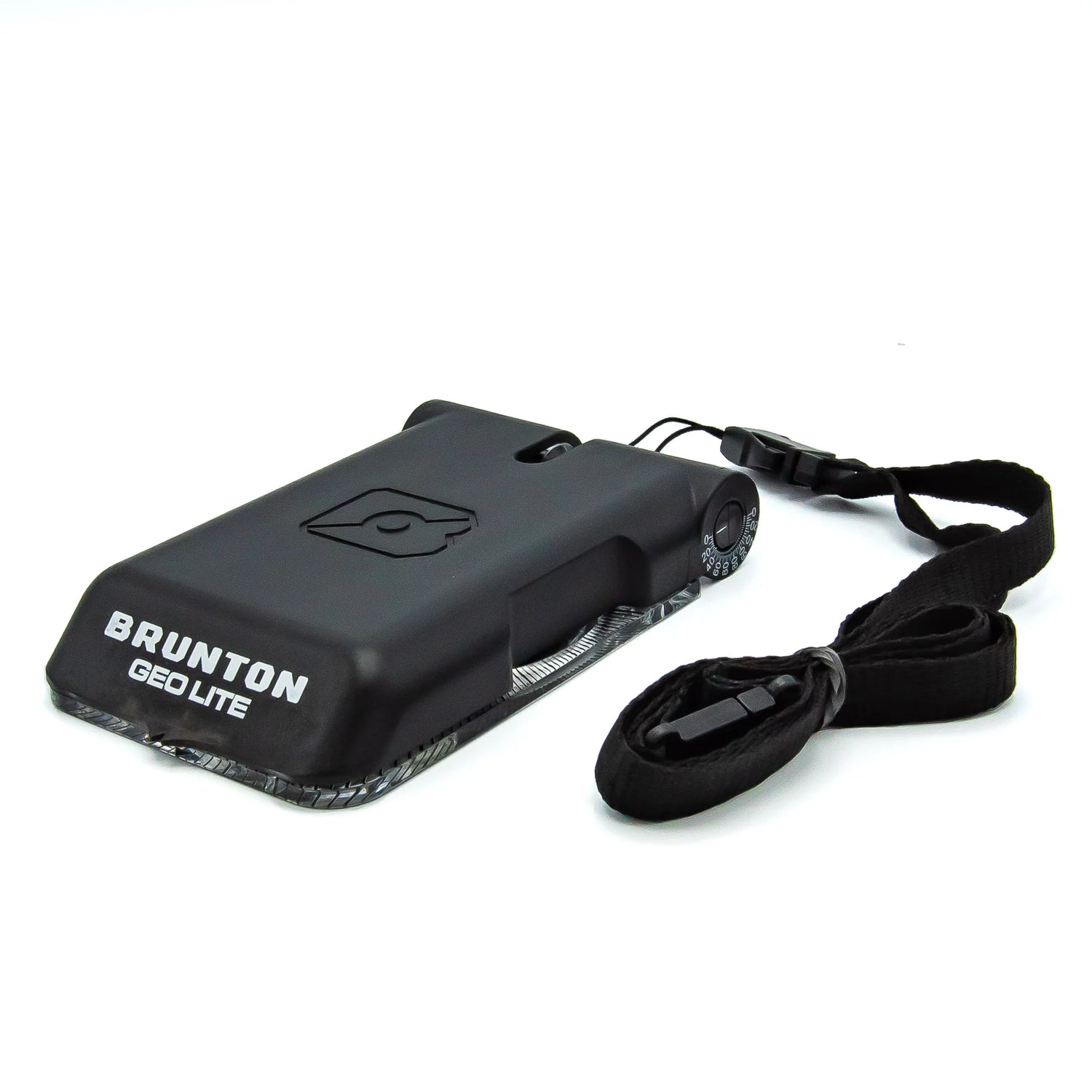

- Recycled glass-filled PA lid for increased durability.
- FSC-certified and recyclable packaging
- Made in the USA in Riverton, Wyoming.
Specifications
| Dimensions | 10.16 x 6.3 x 1.5 cm | 4 x 2.5 x 0.6 in |
| Weight | 68 g | 3.2 oz |
| Azimuth | 2˚ graduations w/ ± 1˚ accuracy |
| Hinge Clinometer | 5˚ graduations w/ ± 2.5˚ accuracy |
| Internal Clinometer | 5˚ graduations w/ ± 2.5˚ accuracy |
| Declination Adjustment | ± 180˚ |
