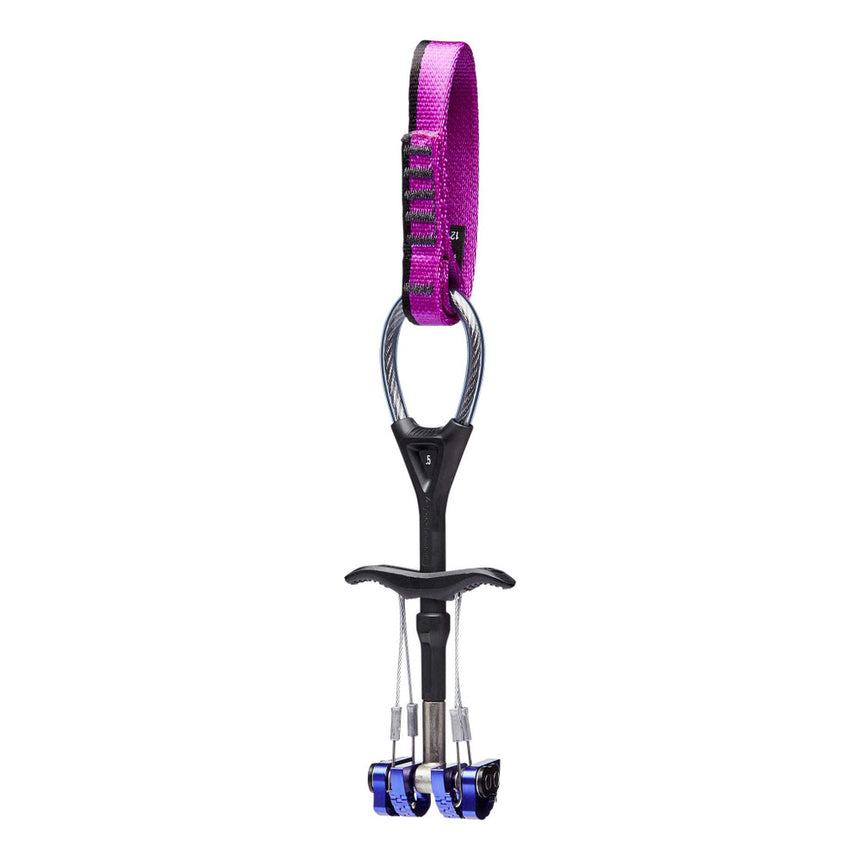

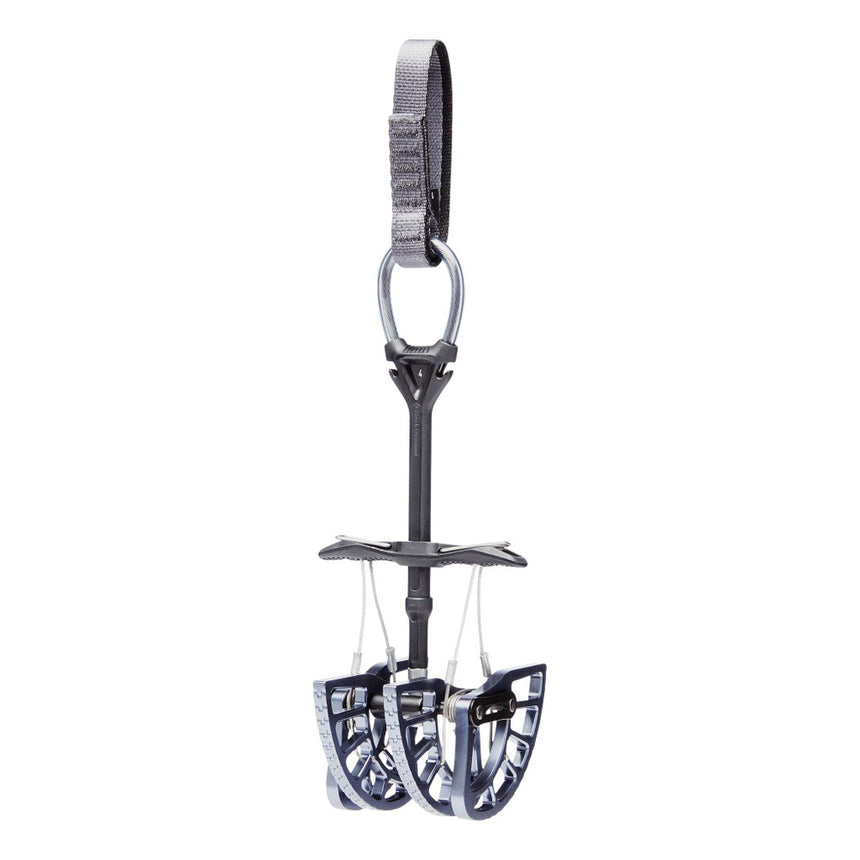

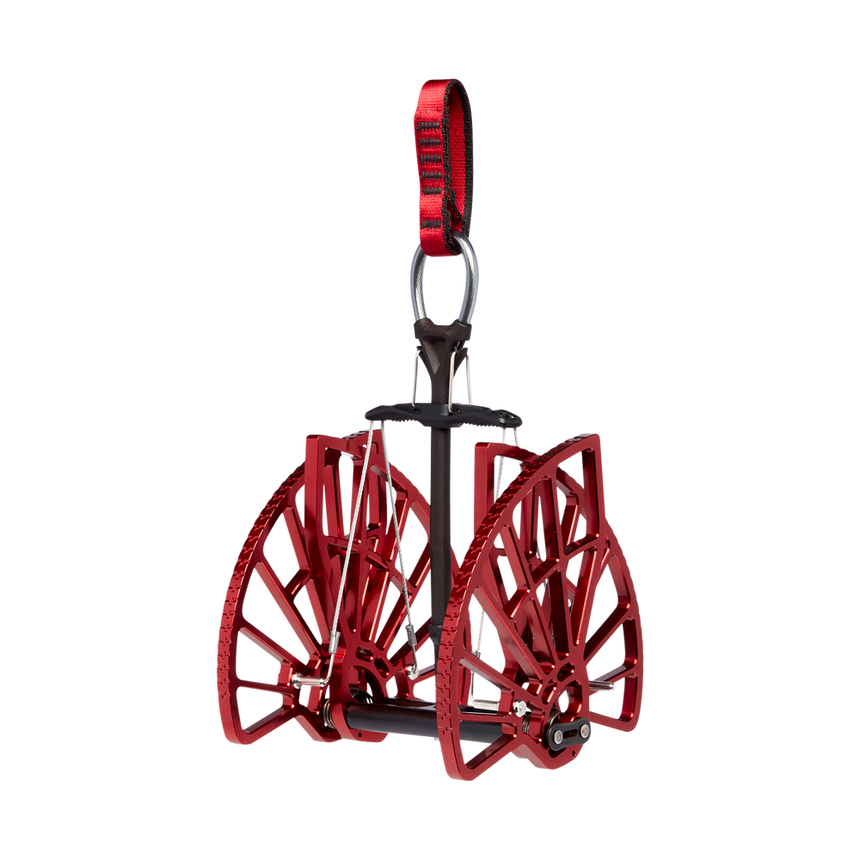

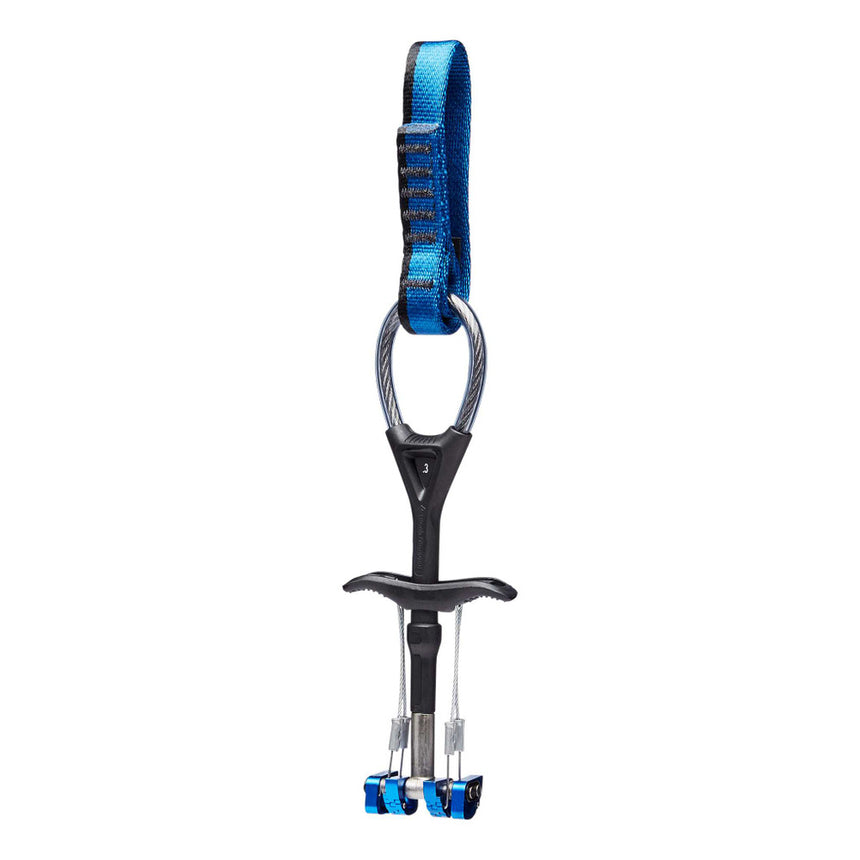

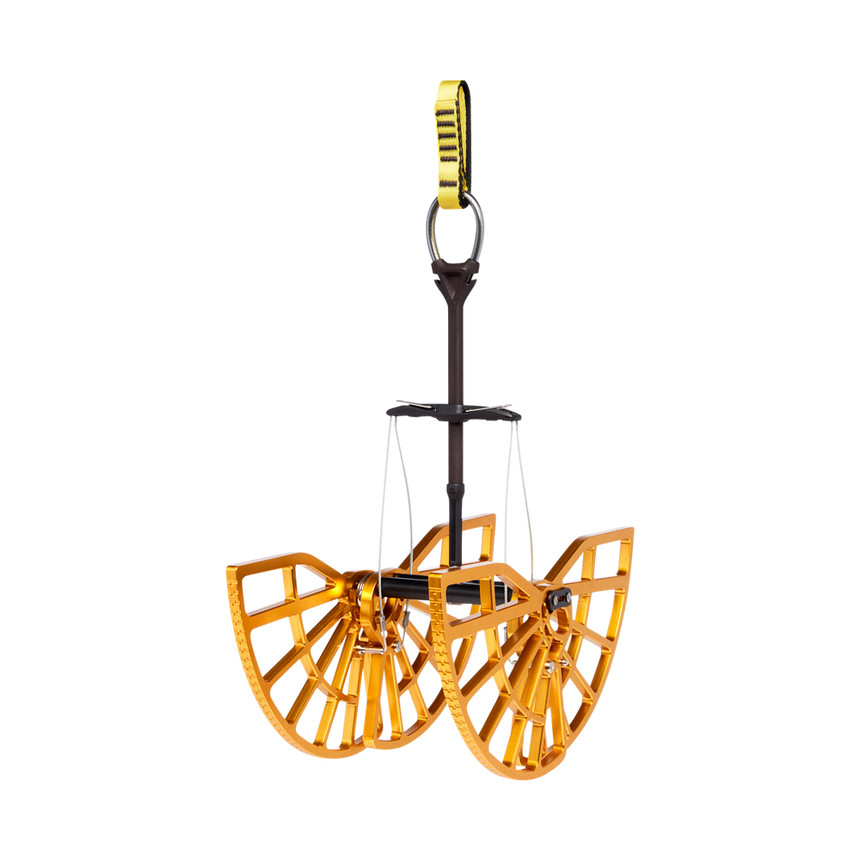

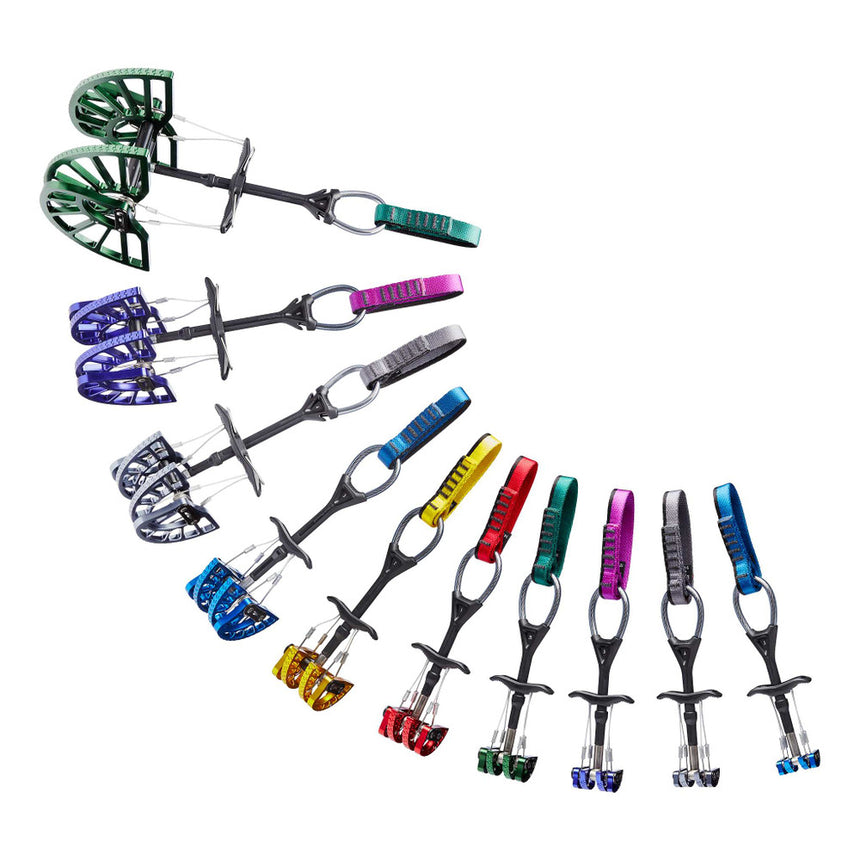

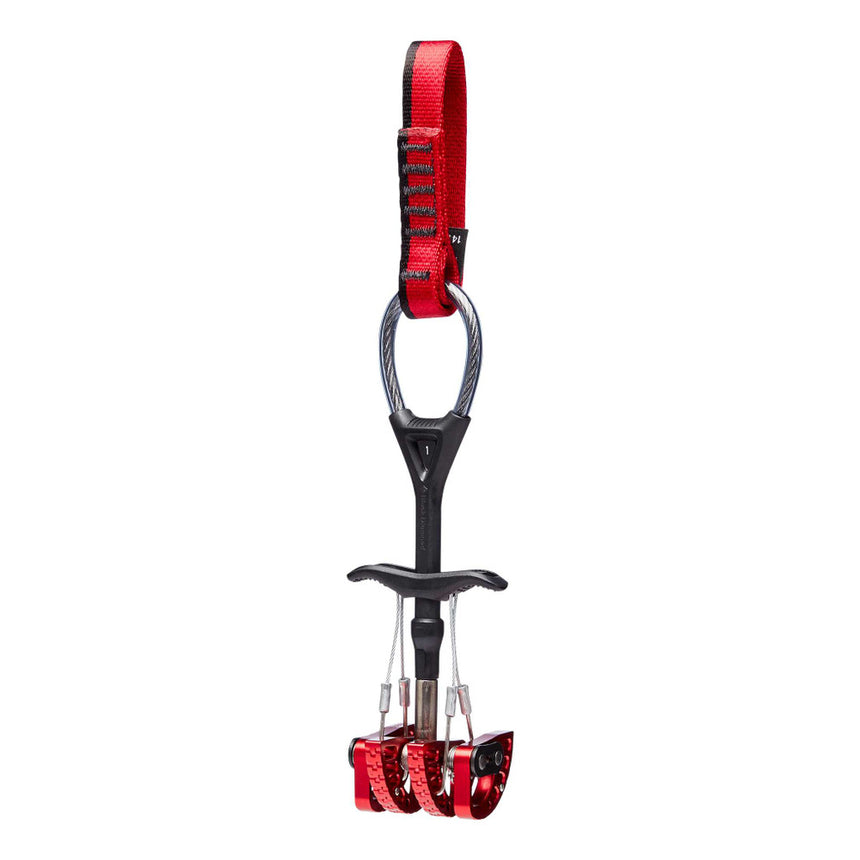

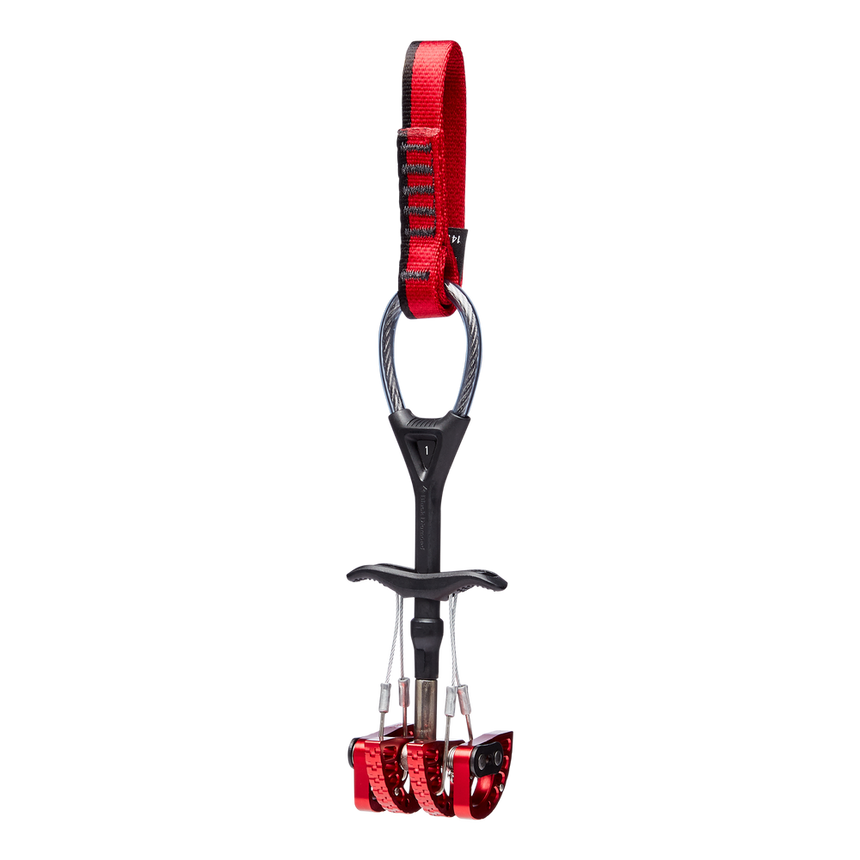

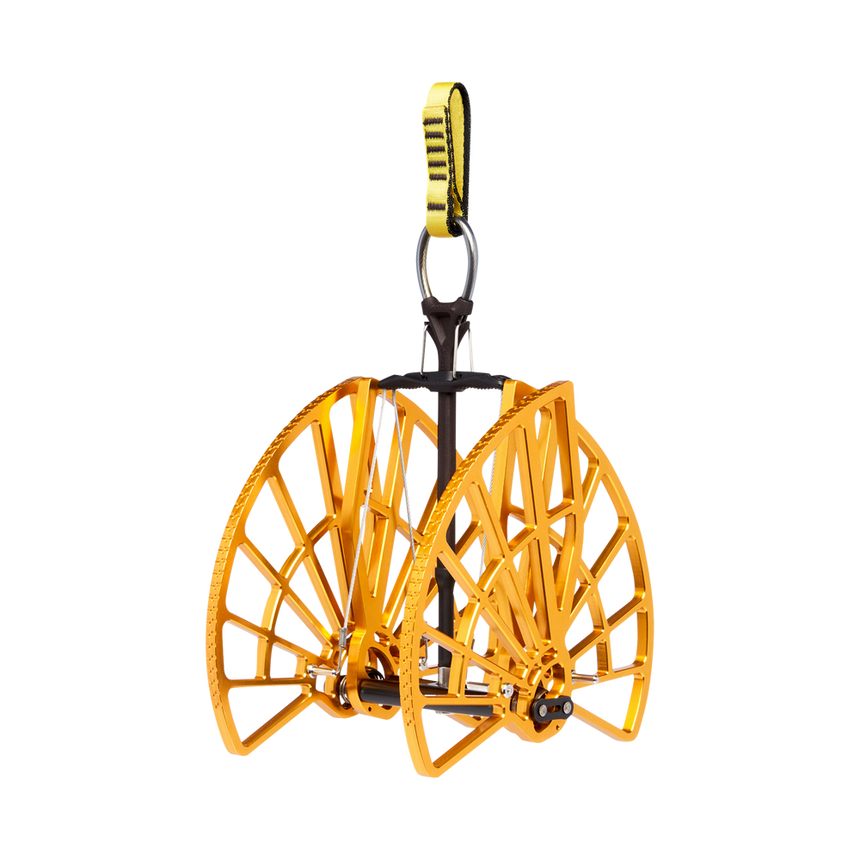

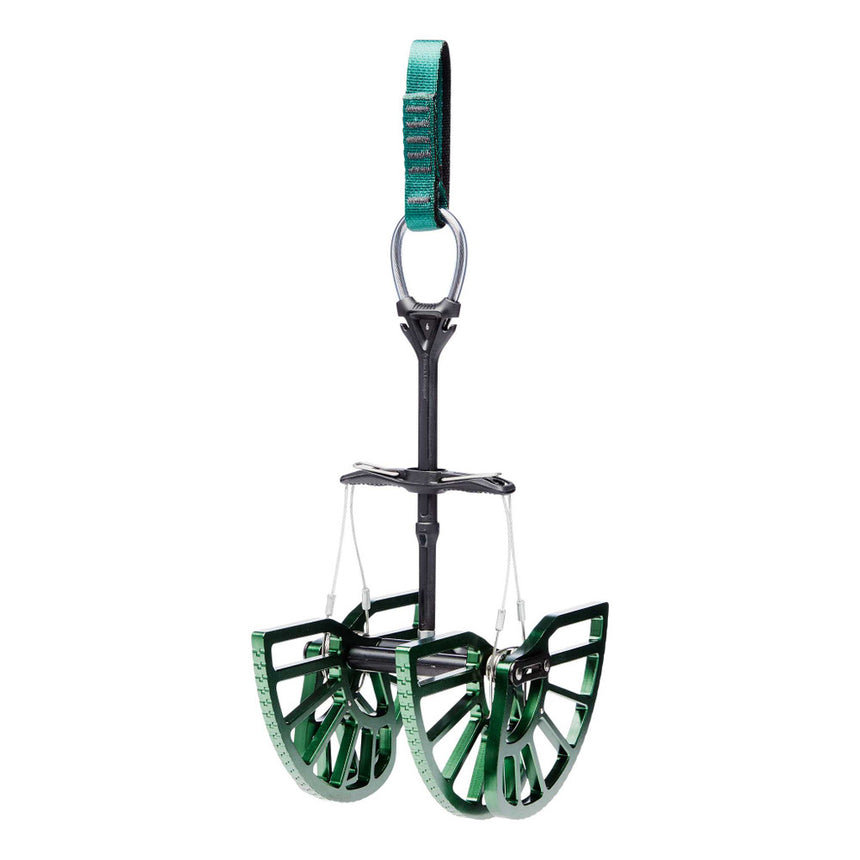

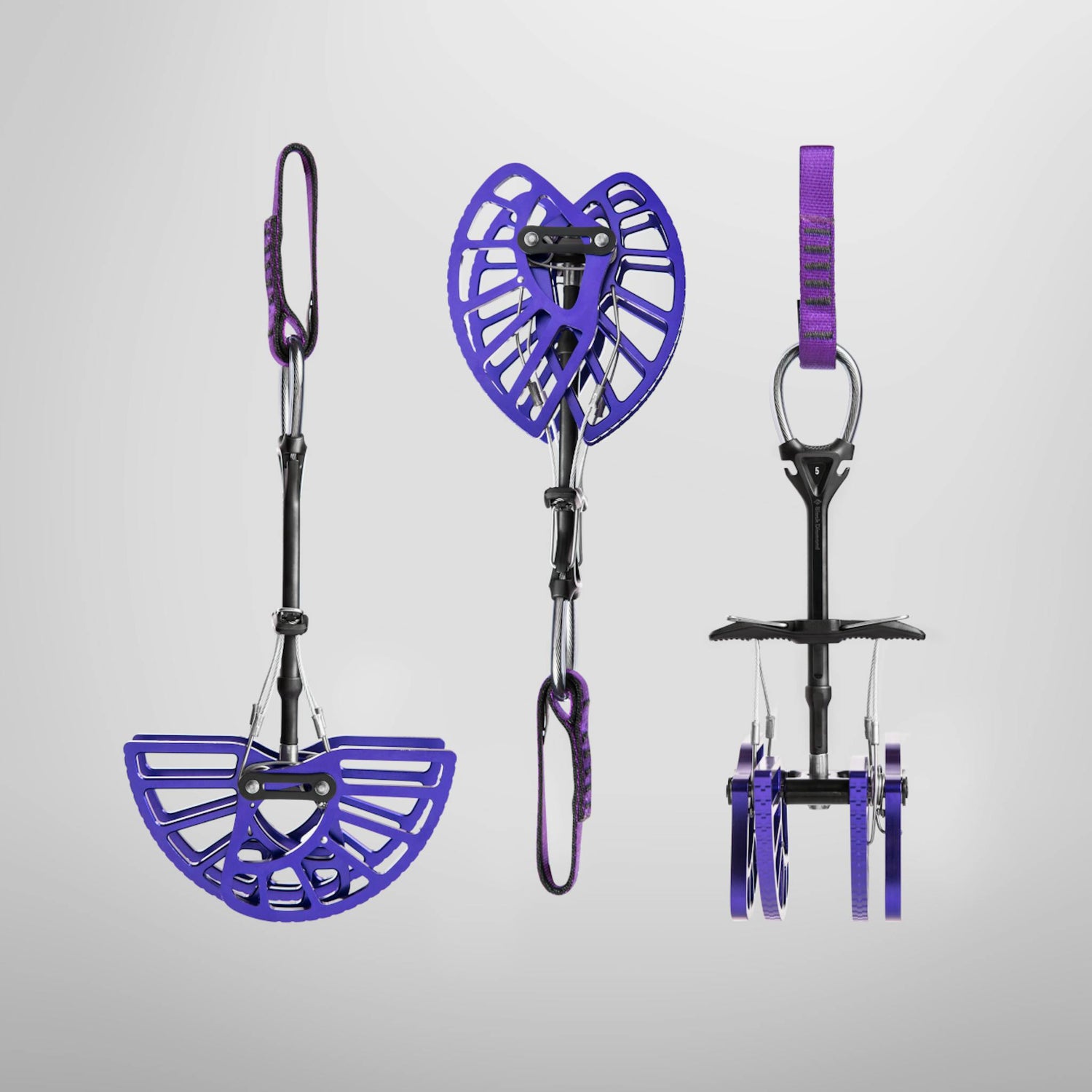

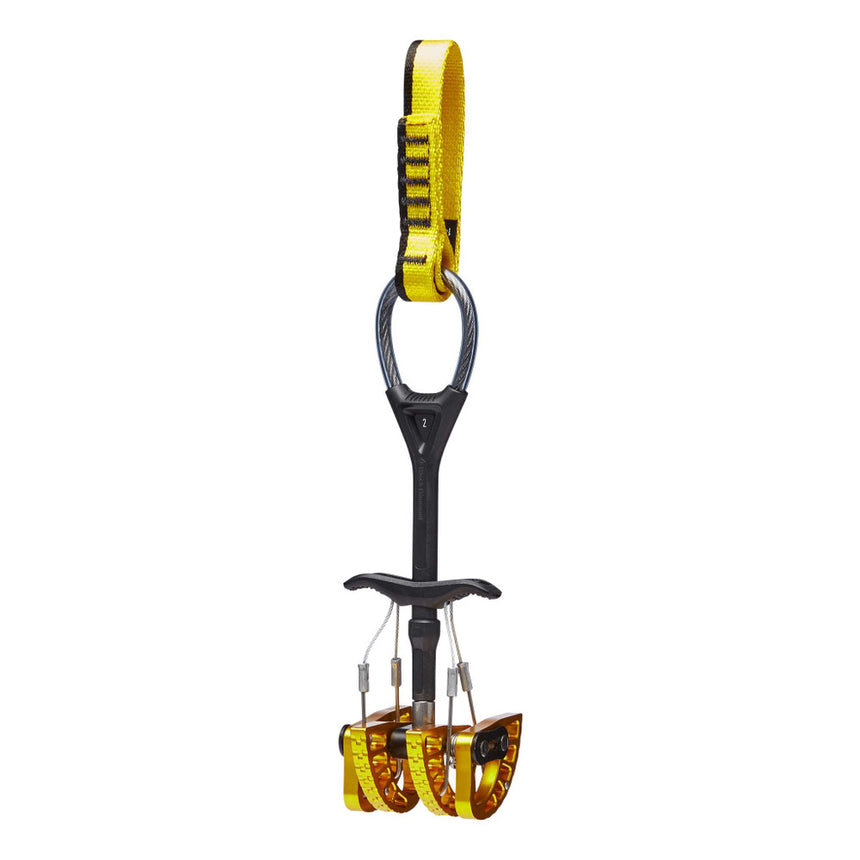

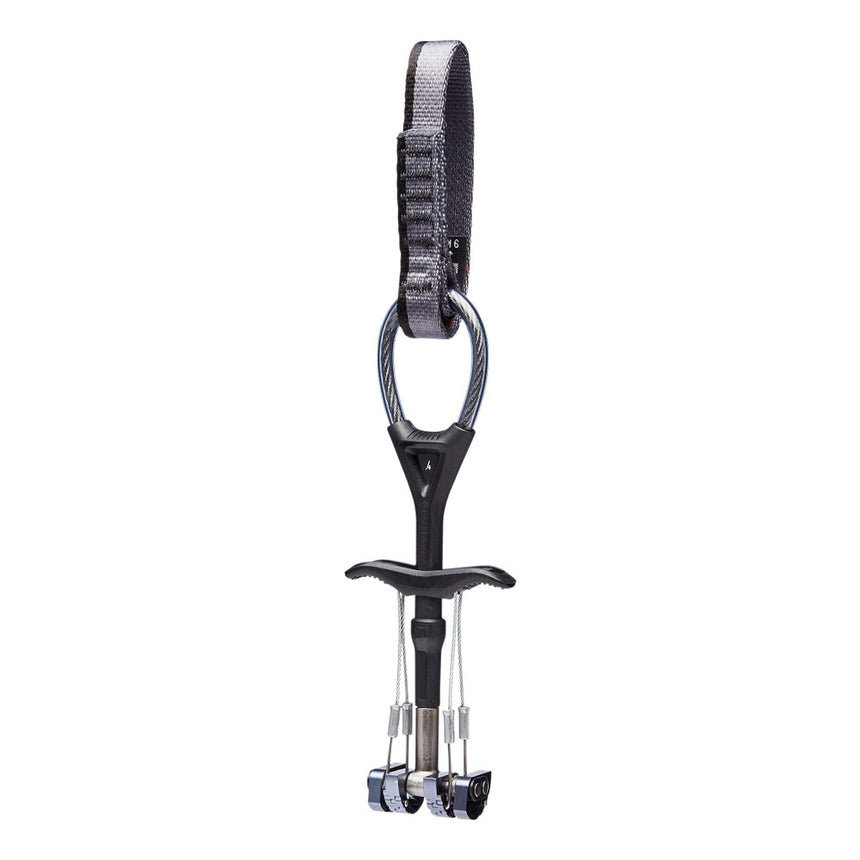

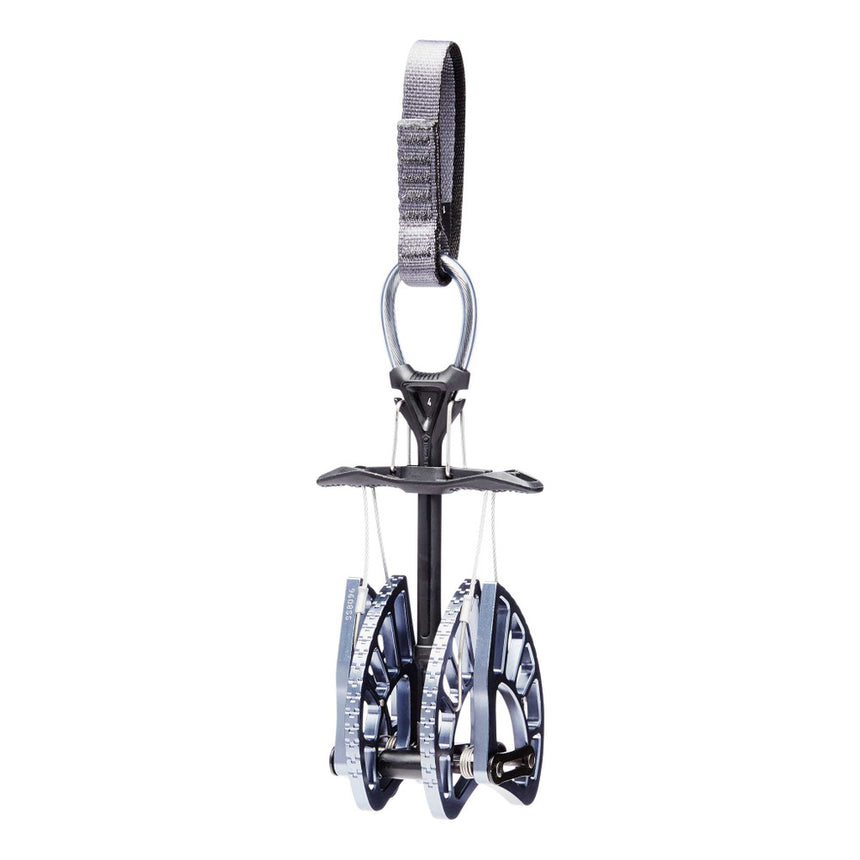

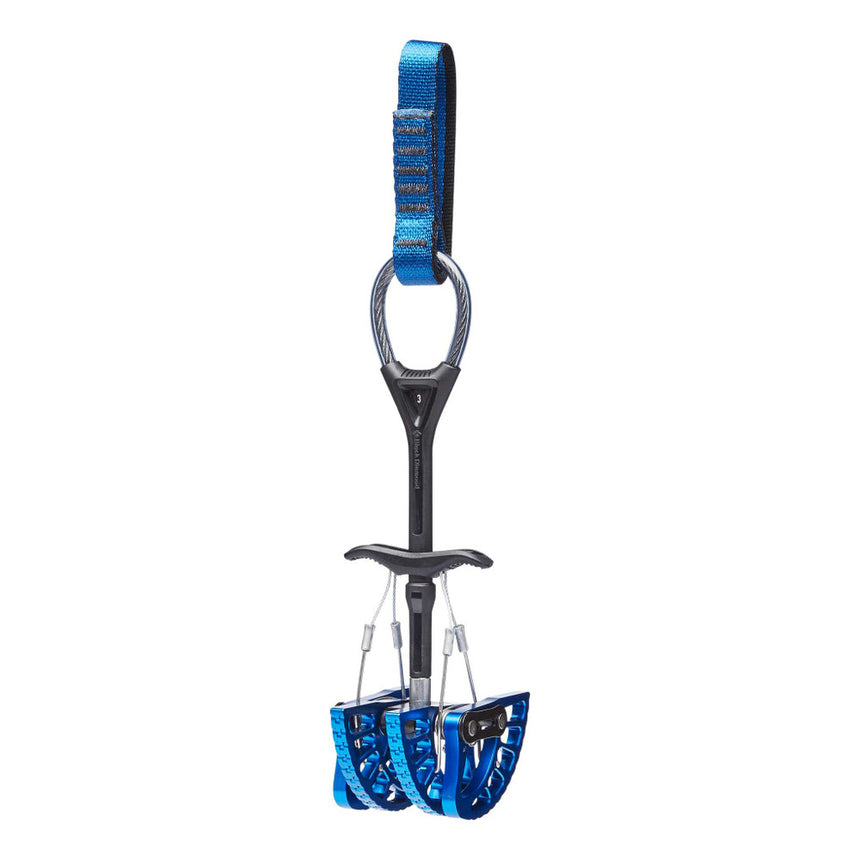

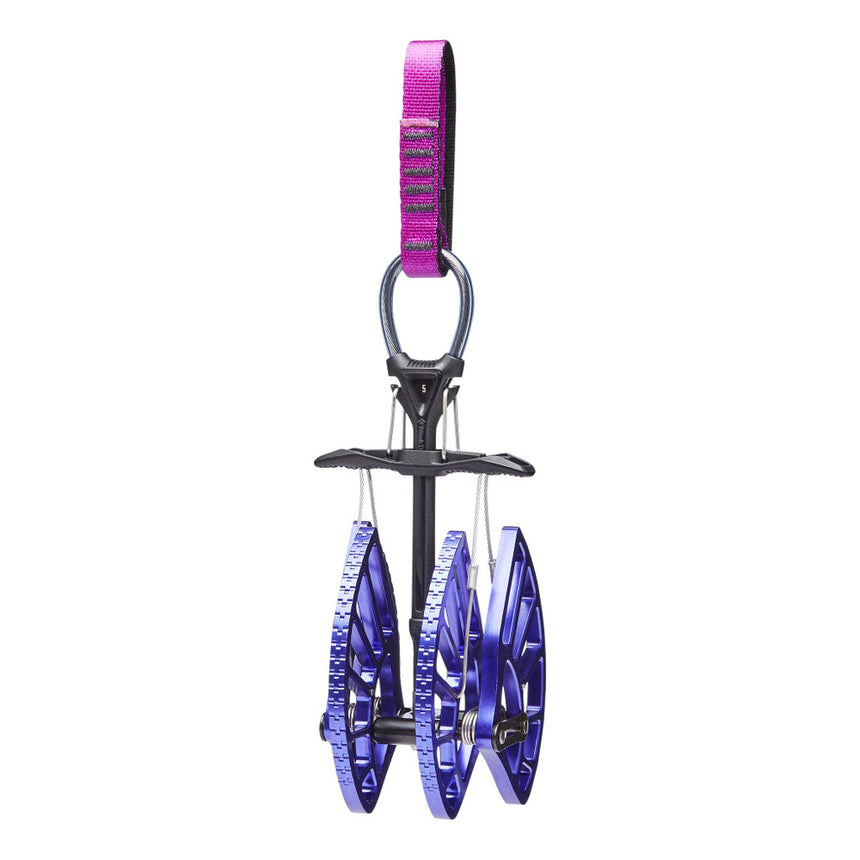

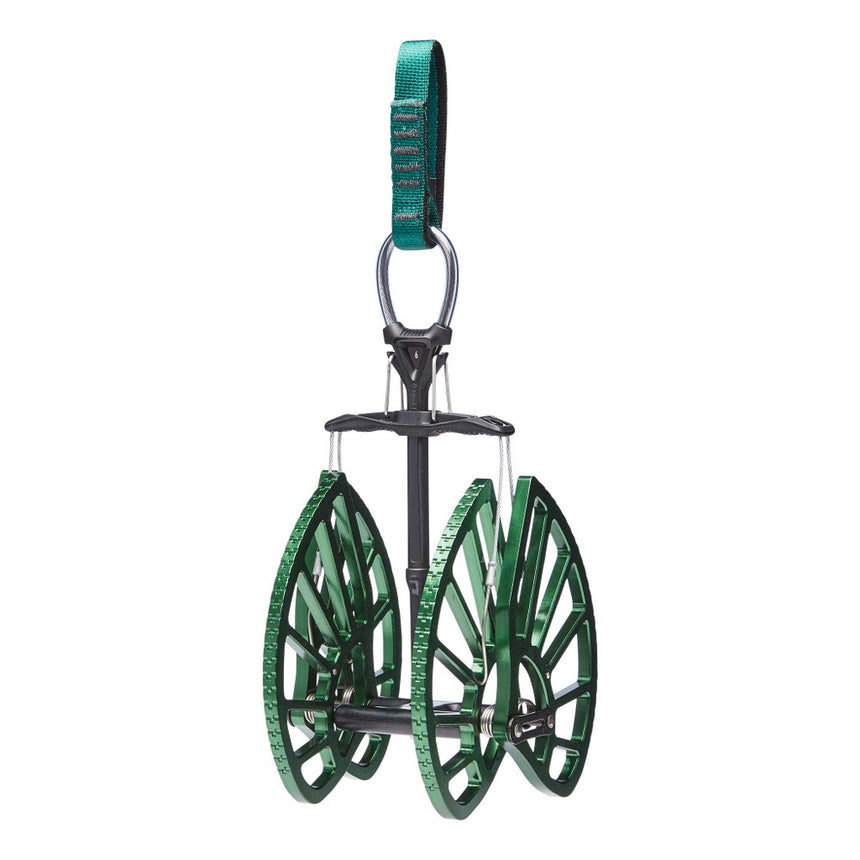

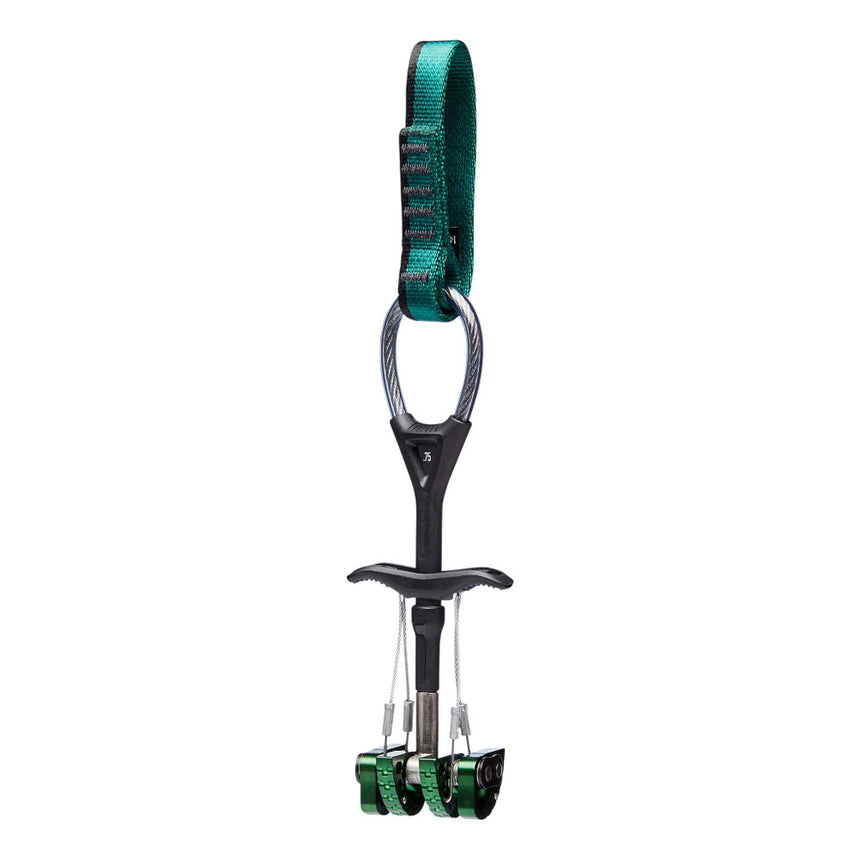

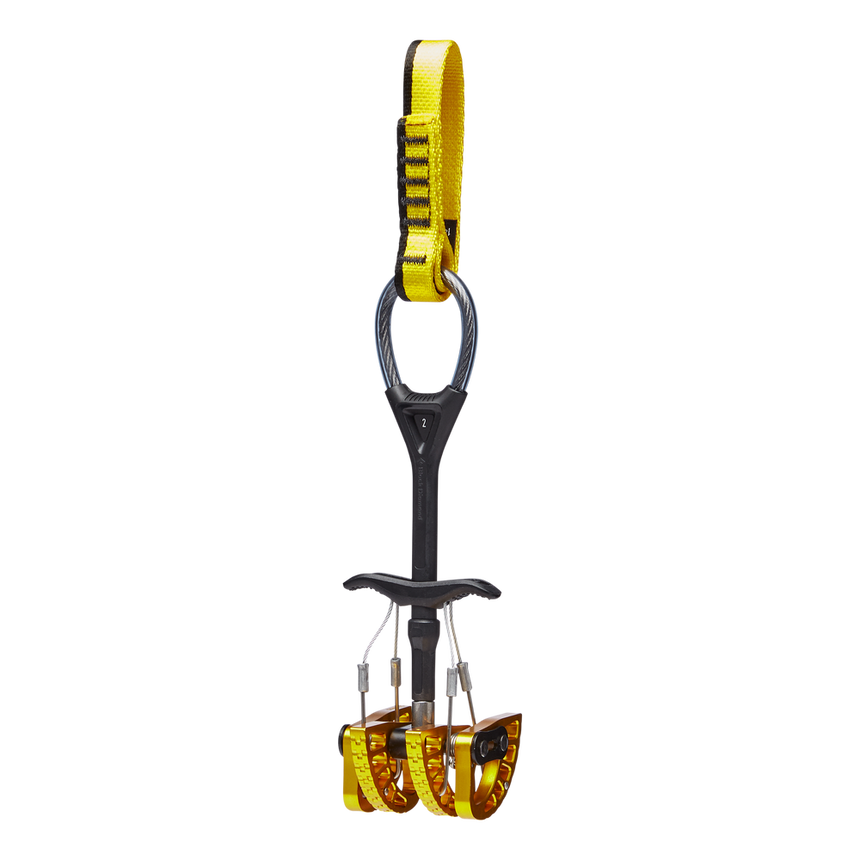

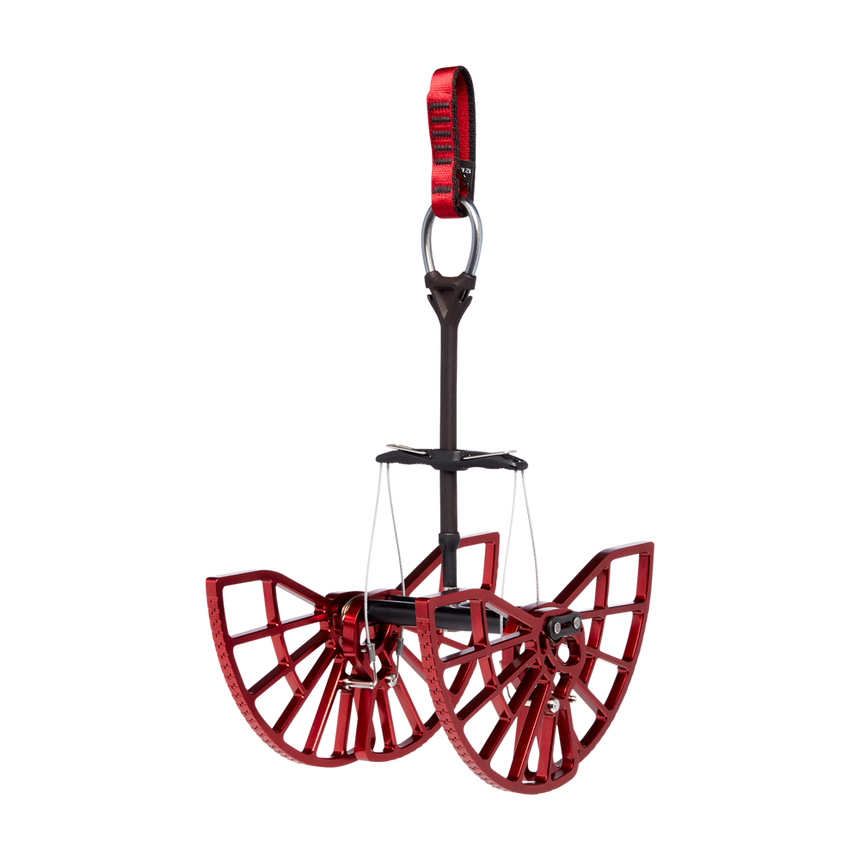

Black Diamond Camalot™ C4
Buy now pay later options
more info...
Black Diamond Camalot™ C4 - #.3 is backordered and will ship as soon as it is back in stock.
Description
Description

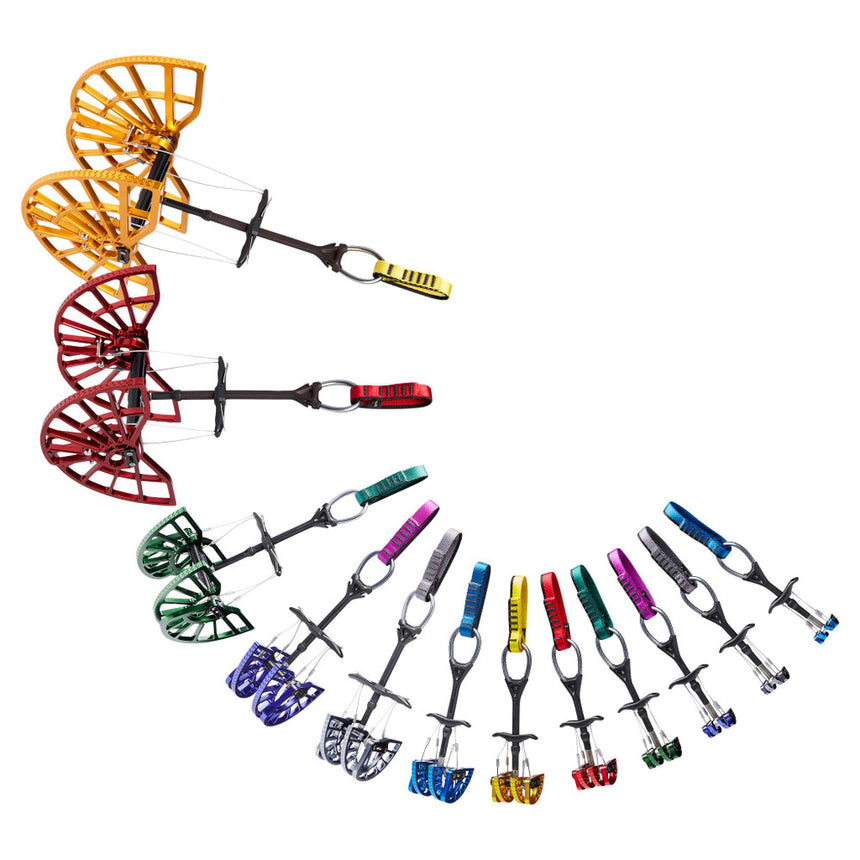

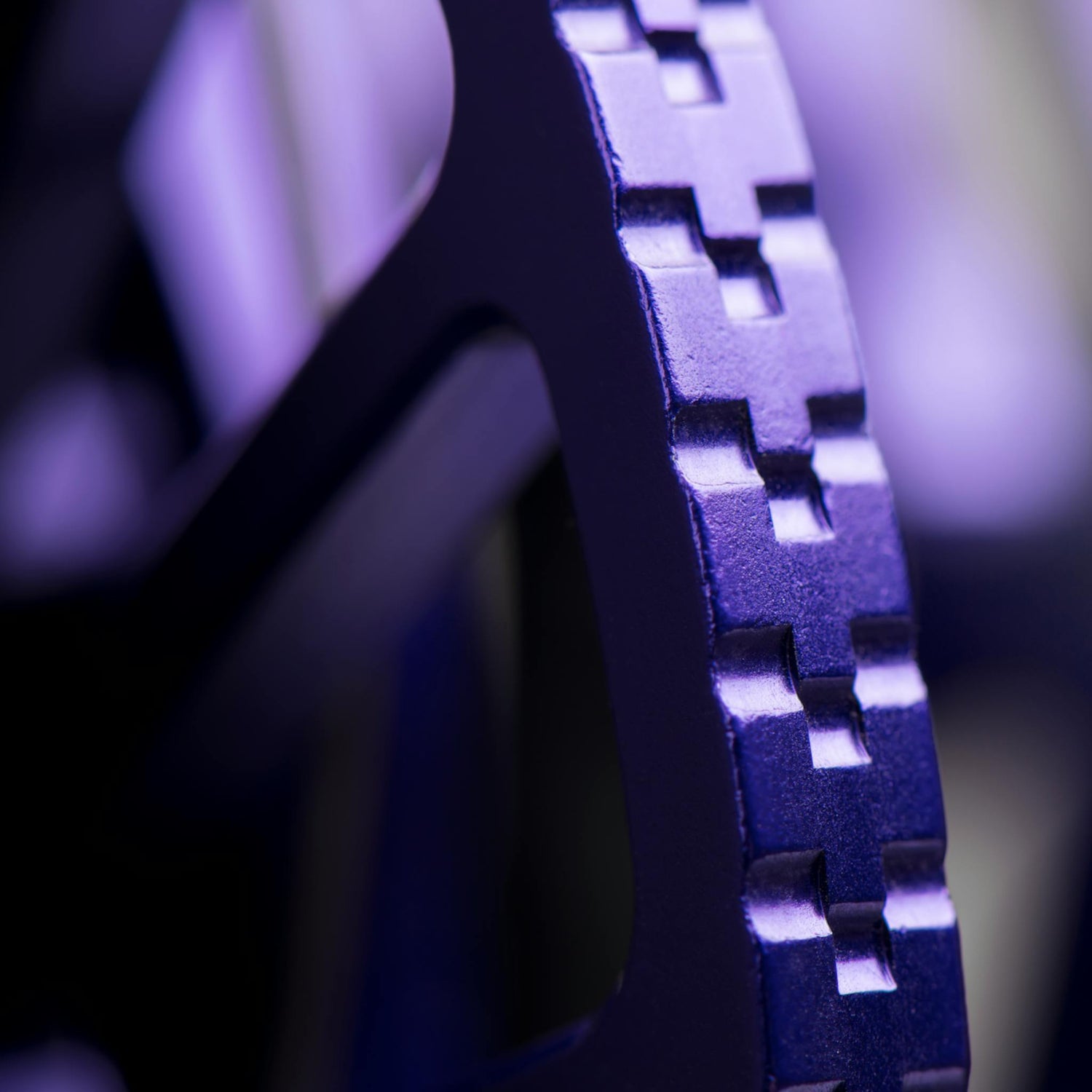

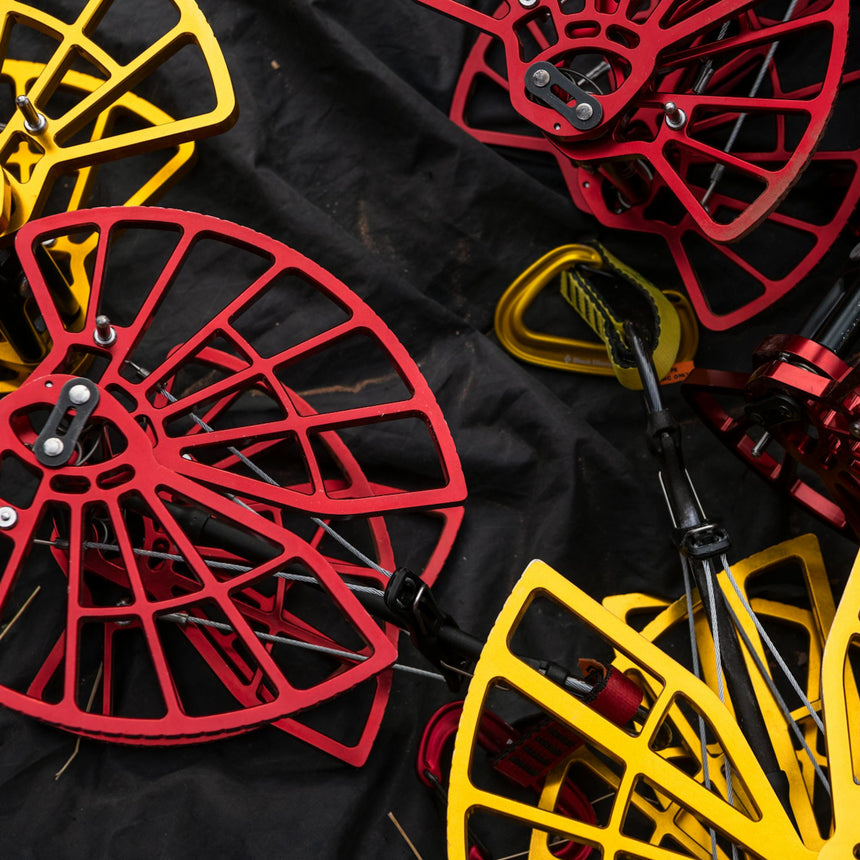

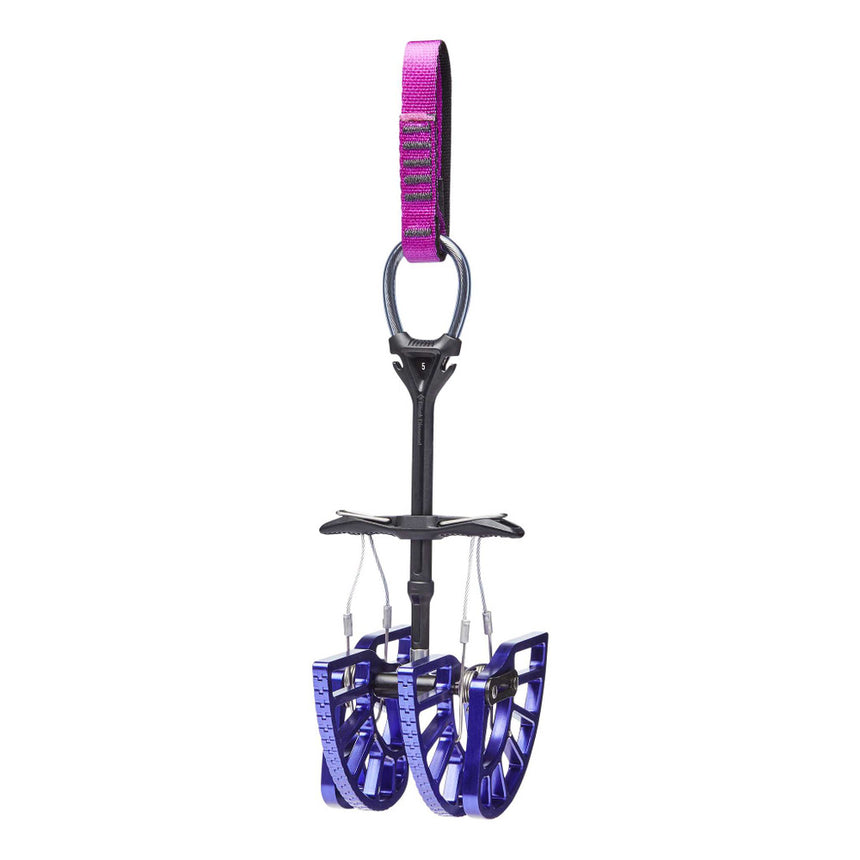

The world’s most popular and trusted cam has just been improved. The redesigned Camalot C4 now sets a new standard, being 10% lighter while maintaining the same level of durability as its predecessor. It showcases a modern design that enhances the classic Camalot features. The cam's lobes are now lighter and more sculpted, optimised for an ideal strength-to-weight ratio, while the slings have received a visual update for easier identification during racking. In addition, a new innovative trigger keeper has been introduced for sizes #4, #5, #6, #7, and #8, ensuring that the larger cams stay compact for racking but release immediately when ready to place. The trigger has also been widened for improved handling.
Features
- The new design is 10% lighter, making it easier to handle.

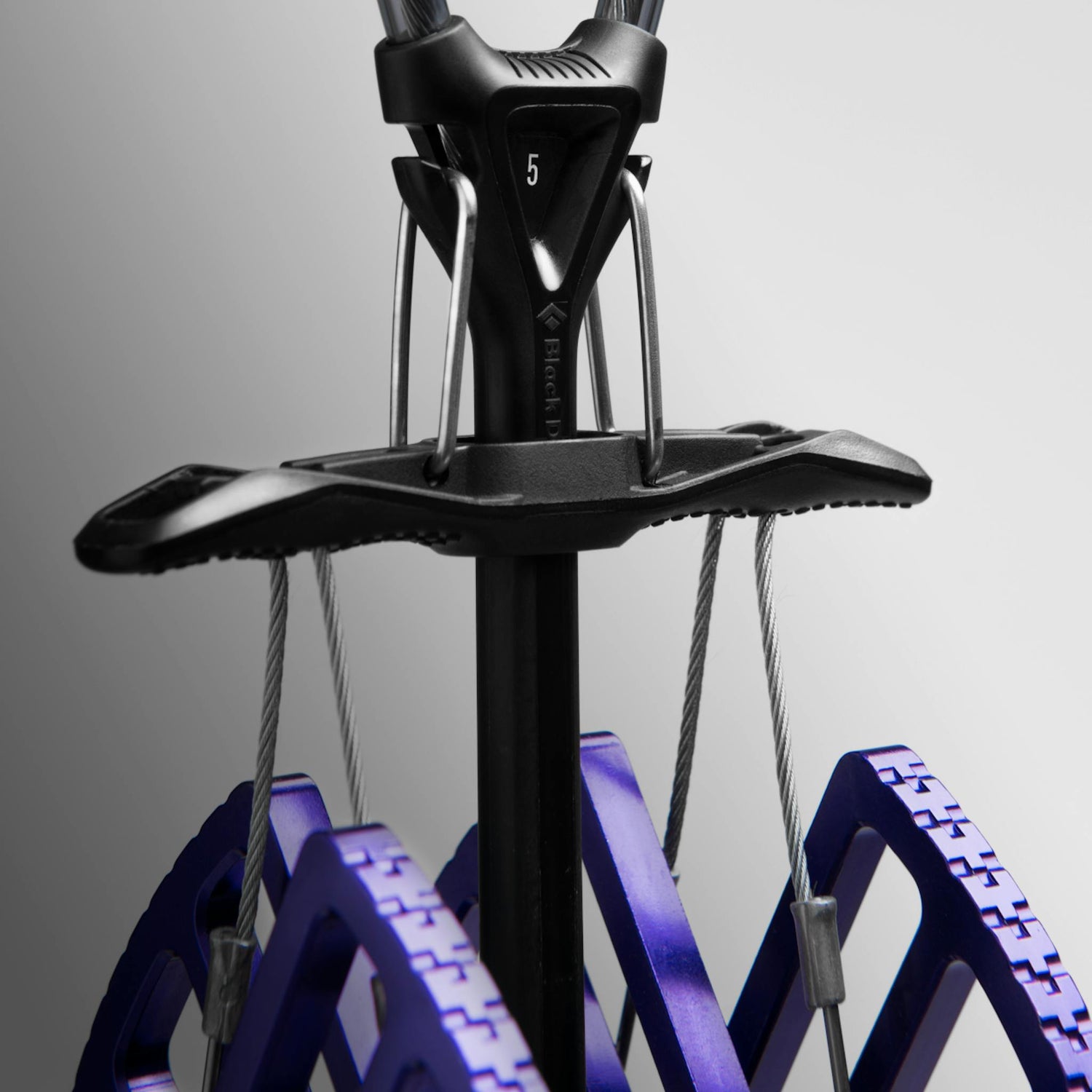

- The innovative trigger keeper on sizes #4, #5, #6, #7, and #8 keeps the cams compact for easier racking and releases quickly when needed.
- The double-axle design provides the widest range of each cam unit, enhancing flexibility.
- The C-Loop continuous cable stem design is both strong and durable, ensuring longevity.
- The LiteWire Rackpack is available, making racking simpler (see Carabiners).
Specifications
| Display Weight | [.3] 69.8 g (2.46 oz) [.4] 77.5 g (2.73 oz) [.5] 93 g (3.28 oz) [.75] 107.5 g (3.76 oz) [#1] 123.9 g (4.37 oz) [#2] 140.3 g (4.94 oz) [#3] 181.1 g (6.38 oz) [#4] 257.8 g (9.09 oz) [#5] 348.1 g (12.27 oz) [#6] 529.9 g (16.69 oz) [#7] 710 g (25 oz) [#8] 974 g (34.4 oz) |
| Range |
[.3] 13.8-23.4 mm (0.54-0.92 in) [.4] 15.5-26.7 mm (0.61-1.05 in) [.5] 19.6-33.5 mm (0.77-1.32 in) [.75] 23.9-41.2 mm (0.94-1.62 in) [#1] 30.2-52.1 mm (1.19-2.05 in) [#2] 37.2-64.9 mm (1.46-2.55 in) [#3] 50.7-87.9 mm (2.00-3.46 in) [#4] 66.0-114.7 mm (2.60-4.51 in) [#5] 85.4-148.5 mm (3.36-5.85 in) [#6] 114.1-195.0 mm (4.50-7.68 in) [#7] 150-253.5 mm (5.9-9.98 in) [#8] 193-321 mm (7.6-12.6 in) |
| Strength |
[.3] 8 kN (1,798 lbf) [.4] 9 kN (2,023 lbf) [.5] 12 kN (2,698 lbf) [.75] 12 kN (2,698 lbf) [#1] 12 kN (2,698 lbf) [#2] 12 kN (2,698 lbf) [#3] 12 kN (2,698 lbf) [#4] 14 kN (3,147 lbf) [#5] 14 kN (3,147 lbf) [#6] 14 kN (3,147 lbf) [#7] 8 kN (1,798 lbf) [#8] 5 kN (1,124 lbf) |
| Weight |
[.3] 69.8g [.4] 77.5g [.5] 93g [.75] 107.5g [1] 123.9g [2] 140.3g [3] 181.1g [4] 257.8g [5] 348.1g [6] 529.9g [7] 710g [8] 974g |
Resources
Product Instructions - Camalot™ C4 & Camalot Ultralight
Product Instructions - Cleaning
